Key Words:
Stone Machine
Max Cutting Length:
2000mm
Material Compatibility:
Granite, Marble, Quartz, Engineered Stone
Processing Angle:
0–45° Adjustable Chamfer & Arc Profiling
Control System:
CNC SYSTEM
Blade Configuration::
Twin 250 mm Diamond Blades (Ø200–Ø300 mm Optional)
Max. Working Length::
3200 mm (Custom 2200–4200 mm Available)
Spindle Power:
2 × 7.5 kW Variable-Frequency Motor
Feed Speed:
0–3 m/min Stepless, Servo-Driven
Cutting Depth:
0–30 mm Precision Stepper Adjustment
Water Consumption:
12 L/min Recirculating Cooling System
Machine Dimensions:
4500 × 1800 × 1800 mm (L × W × H)
Net Weight:
2800 kg Heavy-Duty Steel Frame
Power Supply:
380 V / 50 Hz / 3-Phase (220 V / 60 Hz Option)
Safety & Certifications:
CE, ISO 9001, Emergency Stop & Protective Cover
Optional Features:
Laser Positioning, Online Remote Diagnostics, Dust Extraction Port
برجسته کردن:

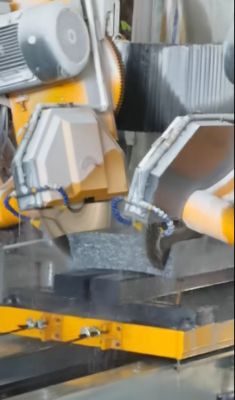

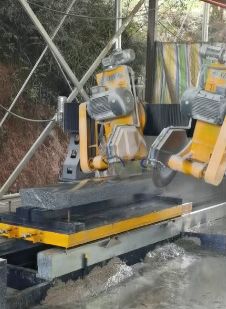

High Precision Stone Arc Chamfering Machine,Twin Blade Stone Arc Chamfering Machine,CNC Stone Arc Chamfering Machine
, Twin Blade Stone Arc Chamfering Machine
, CNC Stone Arc Chamfering Machine
