Name: DRM-300 Vertical Drilling Machine with Ø300 mm Drilling Capacity 700 mm Vertical Stroke and 7.5 kW Main Motor
Brand: Fujian Xianda Machinery co.,ltd
SKU: DRM-300
Price: 27,499.25 USD
Availability: InStock

امکانات گالری توضیحات محصول درخواست نقل قول

امکانات

مشخصات

رنگ: سیاه و زرد ، اختیاری ، سفارشی

درجه: A-GRADE، درخواست مشتری

مدل: DRM-300

کلمات کلیدی: دستگاه حفاری عمودی، دستگاه حفاری هسته سنگ، مته سوراخ سنگ قبر

منبع تغذیه: برقی

وزن: 1300 کیلوگرم

سیستم کنترل: دستی

ظرفیت تولید: 1000 مجموعه در سال

کاربرد: سنگ حفاری

برجسته کردن:

Ø300 mm drilling capacity Vertical Drilling Machine

700 mm vertical stroke Stone Core Drilling Machine

7.5 kW main motor Tombstone Hole Drill

اطلاعات اولیه

محل منبع: جینجیانگ ، فوجیان ، چین

نام تجاری: XIANDA MACHINERY

گواهی: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF

شماره مدل: DRM-300

پرداخت

جزئیات بسته بندی: شستشوی طناب سیم ، مناسب برای حمل و نقل دریایی.

زمان تحویل: 1 ماه

شرایط پرداخت: L/C، D/A، D/P، T/T، وسترن یونیون، مانی گرام

قابلیت ارائه: 1000 مجموعه در سال

گالری

DRM-300 Vertical Drilling Machine with Ø300 mm Drilling Capacity 700 mm Vertical Stroke and 7.5 kW Main Motor

توضیحات محصول

DRM-300 Vertical Drilling Machine

Precision Vertical Driller for Tombstones, Lanterns & Crafts - Ø300 mm * 700 mm Stroke

Machine Overview

The DRM-300 is a vertical-spindle drilling machine built for deep, accurate holes in tombstones, address stones, lantern blanks and craft blocks. With Ø 300 mm max bit, 700 mm lift and 7.5 kW direct motor, it drills straight, chip-free holes 10* faster than hand-held units—ideal for single-piece or small-batch stone workshops.

Why DRM-300?

Feature	Benefit
Ø 300 mm drilling capacity	Accepts large core bits, countersinks and lantern hollow bits
700 mm vertical stroke	Drills through 650 mm stone in one pass
Cross-beam lifting	Bit approaches stone, not table—safer, faster setup
7.5 kW main motor	Constant torque under full load, no belt slip
2 m³/h wet system	Cools bit, removes sludge, extends tool life

Quick Specs

Parameter	DRM-300
Max drilling diameter	Ø300 mm
Cross-beam lift	700 mm
Table size	500 * 400 mm (standard)

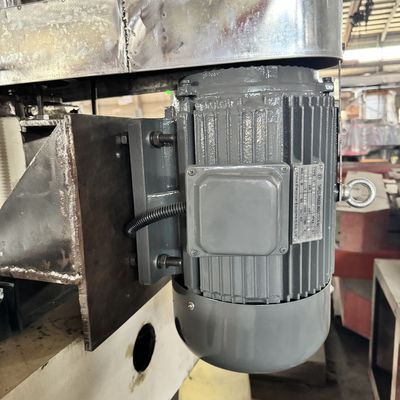

Main motor	7.5 kW, 3-phase, 380 V
Spindle speed	480-1 400 rpm (inverter)
Water consumption	2 m³/h (recycled)
Dimensions	1 300 * 800 * 2 500 mm
Weight	~1 300 kg

Ideal Applications

Tombstone flower holes
Address stone cores
Lantern craft
Countertop faucet holes
Monument base anchors

Materials: granite, marble, basalt, engineered stone, limestone.

Workflow (1 Operator)

Place stone on table, clamp manually

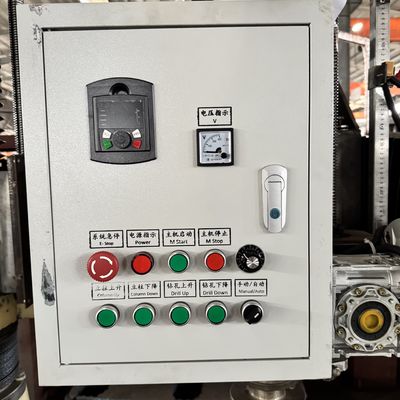

Select speed on inverter panel

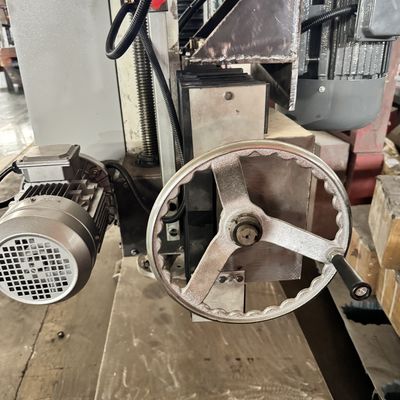

Lower bit with hand-wheel until contact
Start spindle + water - automatic feed completes hole
Lift bit, remove stone - core falls out

Package, Delivery & Warranty

Export crate: plywood + steel frame
Delivery: 10 days (stock) / 20 days (custom colour)
Warranty: 12 months for parts
Installation: video-guide + remote support; on-site service optional
Spare parts: 48 h dispatch from regional warehouse

Pricing, MOQ & Shipping

Item	Detail
MOQ	1 (one) machine
Shipping	Sea freight to nearest port included
Incoterms	FOB, CIF, DDP optional
Lead time	10 days stock / 20 days custom
Payment	T/T 30% deposit, 70% before shipment; L/C at sight accepted
