Infrared Middle Block Bridge Cutting Machine Stone Machine for Marble & Granite

1
MOQ
$20,000.00 - 26,000.
قیمت
Infrared Middle Block Bridge Cutting Machine Stone Machine for Marble & Granite
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
برجسته کردن:

Infrared bridge cutting machine for marble,Granite stone cutting machine with warranty,Diamond wire saw machine for stone

,

Granite stone cutting machine with warranty

,

Diamond wire saw machine for stone

اطلاعات اولیه
محل منبع: جینجیانگ ، فوجیان ، چین
نام تجاری: Xianda
گواهی: API, CCC, SONCAP, GOST, ISO, CE
شماره مدل: MGKQ-1200/1400
پرداخت
زمان تحویل: 45 روز
شرایط پرداخت: L/C ، D/A ، D/P ، T/T
قابلیت ارائه: 1000set/ سال
توضیحات محصول

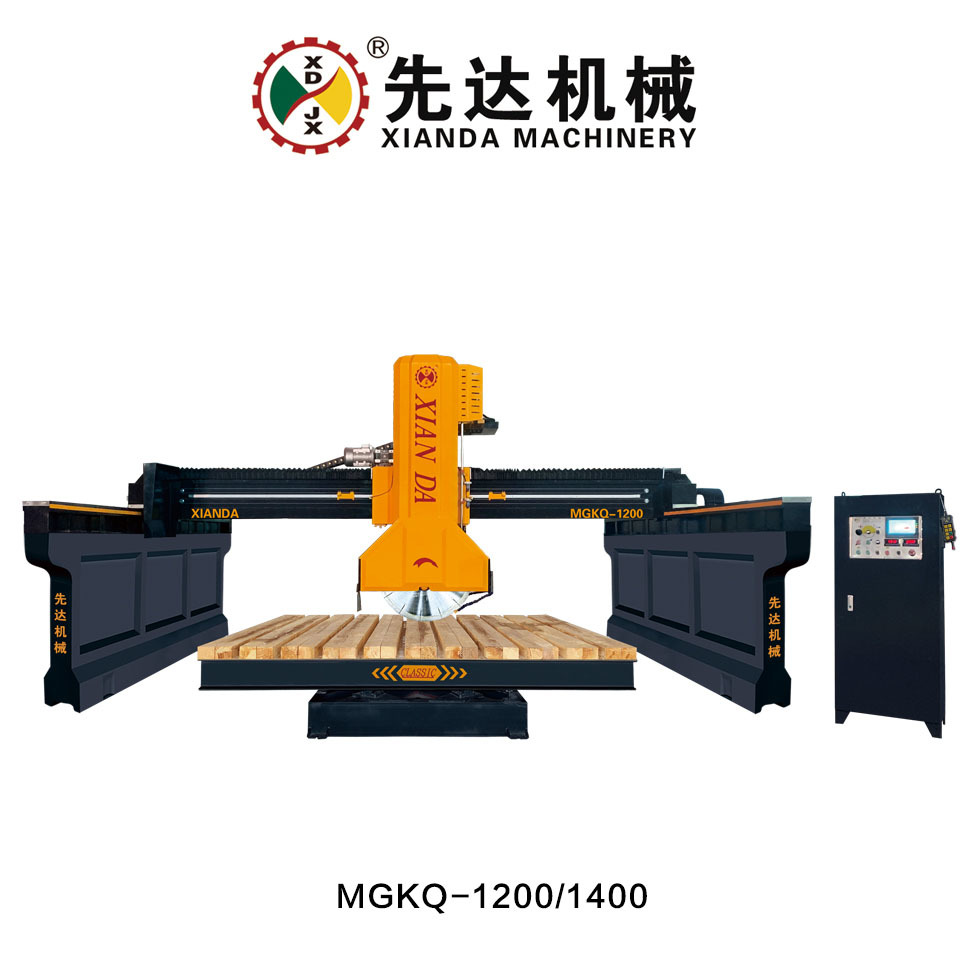

Infrared Middle Block Bridge Cutting Machine for Marble & Granite
Basic Specifications
Model No. MGKQ-1200/1400
Type Bridge Cutting Machine
Usage Granite, Marble
Application Construction, Stone Industry
Source Voltage 380V
Automation Automatic
Certification API, CCC, SONCAP, GOST, ISO, CE
Max Processing Size 3200*2000*4500mm
Gross Weight 6850kg
Infrared Middle Block Bridge Cutting Machine Stone Machine for Marble & Granite 0
Product Features
  • Designed with reasonable structure and PLC control system
  • Features Chinese & English dual operation language interface
  • Equipped with infrared device and ultra-high precision rotary encoder
  • Inverter-controlled left-right feeding with adjustable speed
  • Hydraulic lifting system with slide plate mechanism
  • Unique side beam protection device for enhanced safety
  • High-quality imported main components for durability
  • High cutting efficiency and stability for shaped stone products
  • Ideal for tombstone and curb stone production
Technical Parameters (MGKQ-1200 Model)
Parameter Value
Max blade diameter 1200mm
Max lifting travel 760mm
Worktable size 3000*2000mm
Worktable rotating degree 0-90°
Water consumption 4m³/h
Main motor 22kw
Gross motor 29kw
Outline dimension 6150*4800*4000mm
Gross weight 6800kg
Related Products
About Xianda Machinery

Fujian Xianda Machinery Co.Ltd was established in 1985 and has been dedicated to the development and production of stone processing machinery including column making machines, wire saw stone cutting machines, block trimming machines, bridge saw cutting machines, and profiling stone cutting machines.

With ISO9001 certification and CE compliance, we maintain "Advanced Technology and High Quality" as our core principle. Our 'Xianda' brand machines are recognized for their reliability in stone shape processing applications.

Infrared Middle Block Bridge Cutting Machine Stone Machine for Marble & Granite 5
After-Sales Service
  • Professional machine installation and operation training
  • Overseas engineer support available
  • 24-hour online after-sales service

For any inquiries or support, please contact our sales or customer service department.
